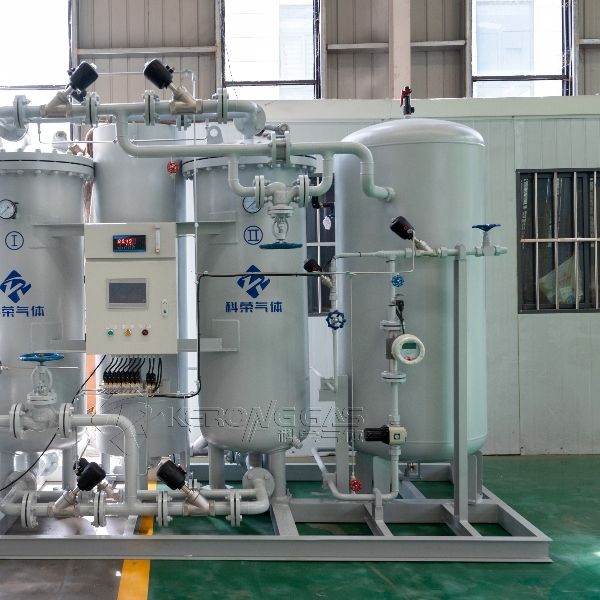

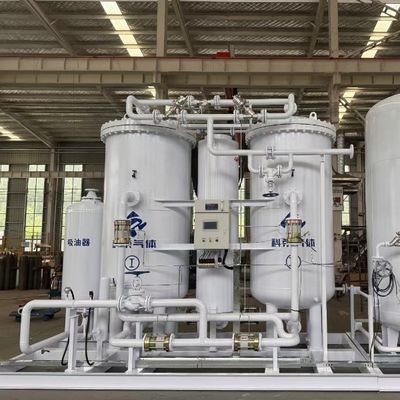

50Nm3/Hr PSA Nitrogen Generator for Heat Treatment
Szczegóły Produktu:
| Place of Origin: | China |
| Nazwa handlowa: | KERONG GAS |
| Orzecznictwo: | ISO9001, CE, ASME |
| Model Number: | KRN |
Zapłata:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Cena: | negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 8 weeks |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs per year |
|
Szczegóły informacji |
|||
| Name: | Nitrogen Generation System Package | Purity: | 90%~99.9999% |
|---|---|---|---|
| Dew point: | -45℃ or more | Material: | Stainless steel or carbon steel |
| Capacity: | 5Nm3/hr~5500Nm3/hr | Pressure: | Adjustable |
| Podkreślić: | 50Nm3/Hr PSA nitrogen generator,auto operation nitrogen gas system,heat treatment nitrogen generation package |
||
opis produktu
| Attribute | Value |
|---|---|
| Name | Nitrogen Generation System Package |
| Purity | 90%~99.9999% |
| Dew point | -45℃ or more |
| Material | Stainless steel or carbon steel |
| Capacity | 5Nm3/hr~5500Nm3/hr |
| Pressure | Adjustable |
Our 50Nm³/Hr Auto Operation Nitrogen Generation System Package is designed for heat treatment applications demanding reliable, high-purity nitrogen supply. Using advanced Pressure Swing Adsorption (PSA) technology, it produces up to 50Nm³/hr of nitrogen with stable purity and pressure, ensuring oxidation-free and consistent metal processing.
The fully automated system integrates air compression, drying, filtration, and intelligent controls, enabling 24/7 unattended operation with minimal maintenance. Ideal for annealing, brazing, and sintering, it eliminates the need for bulk nitrogen deliveries, reducing operational costs. Built with robust, industrial-grade components, this package guarantees dependable performance in demanding high-temperature manufacturing environments.
| Model | Nitrogen flow rate (Nm3/hr) | Purity (%) | Air need (m3/min) | Net dimensions (mm) |
|---|---|---|---|---|
| KRN159 | 7 | 99 | 0.33 | 1200*600*1900 |
| 6 | 99.5 | 0.32 | ||
| 5 | 99.9 | 0.32 | ||
| 4 | 99.95 | 0.3 | ||
| 3 | 99.99 | 0.25 | ||
| 2 | 99.999 | 0.22 |
Note: Complete technical specifications available upon request.
- Online monitoring of oxygen purity, pressure, flow rate and dew point
- Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying
- Air dryer and air filters automatic drainer discharge
- Automatic warning of spare parts replacement
- Remote control / fully automatic operation
- Molecular sieve automatic compaction
- Pneumatic valve switching by programmable controller automatic control
- Compatible with IPC, DCS, and other specific program configurations
A: We are a factory with over 20 years of industrial experience.
A: Yes, we can customize it as per your request.
A: About 60~90 days after receiving deposit.
A: We have ASME, CE, ISO9001-2015, ISO13485 for medical oxygen generator. And we can apply for specific certificates for different countries such as SONCAP for Nigeria, SASO for Saudi Arabia, etc.
A: Beyond warranty period (12 months against any manufacturing defect from the date of equipment acceptance after commissioning or 18 months from the time of delivery, whichever comes first), supplier will provide spare parts, accessories, and easily damaged parts at preferential prices.
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
A: Qingdao port or Tianjin port. And we can arrange delivery to Guangzhou, Shanghai, Urumqi, or other Chinese cities.
A: We can provide this as per your request.
