Skid Mounted Design Ammonia Dissociation Unit With Pressure Vessel Rated
Szczegóły Produktu:
| Miejsce pochodzenia: | Chiny |
| Nazwa handlowa: | KERONG GAS |
| Orzecznictwo: | ISO9001 |
| Numer modelu: | ANH, NHP |
Zapłata:
| Minimalne zamówienie: | 1 szt |
|---|---|
| Cena: | negotiable |
| Szczegóły pakowania: | drewniane pudełko |
| Czas dostawy: | 8 tygodni |
| Zasady płatności: | Akredytywy, T/T, Western Union, MoneyGram |
| Możliwość Supply: | 1000pcs rocznie |
|
Szczegóły informacji |
|||
| Nazwa: | Jednostka dysocjacji amoniaku | Katalizator: | Katalizator niklowy |
|---|---|---|---|
| Punkt rosy: | -70 ℃ | Tworzywo: | Stal nierdzewna lub stal węglowa |
| Pojemność: | 5 Nm3/godz. ~ 250 Nm3/godz | Ciśnienie: | 0,5 bara lub więcej |
| Podkreślić: | Skid mounted ammonia dissociation unit,Ammonia cracker pressure vessel,Rated pressure ammonia dissociation system |
||
opis produktu

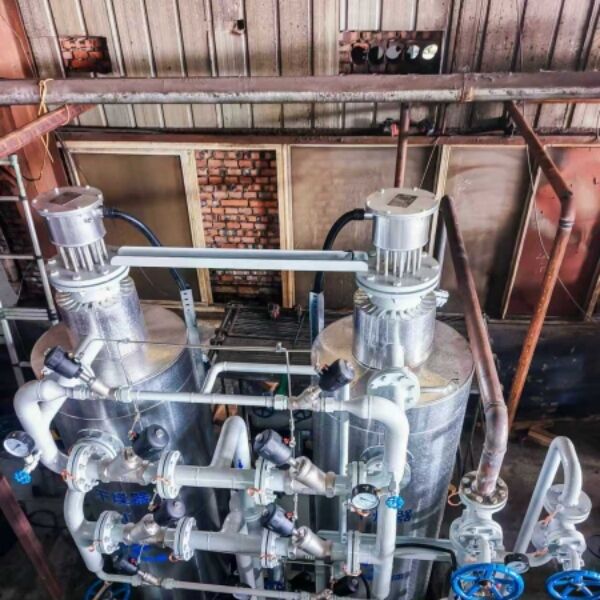

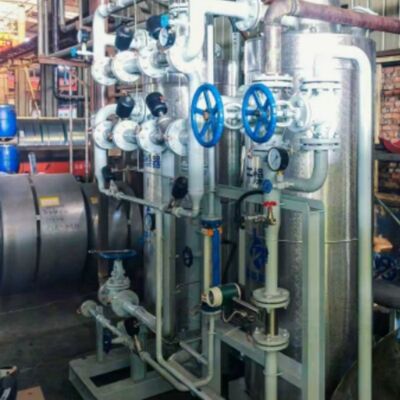

Skid Mounted Design Ammonia Dissociation Unit With Pressure Vessel Rated
Product description
Our Skid Mounted Design Ammonia Dissociation Unit with Pressure Vessel Rated Construction is designed to provide a reliable source of dissociated ammonia gas for heat treatment, annealing, brazing, and metallurgical applications. Utilizing advanced thermal dissociation technology, it converts ammonia into a hydrogen-rich nitrogen atmosphere with stable composition and consistent output. The skid-mounted, pre-assembled design enables easy transportation, rapid installation, and simplified commissioning. Built with pressure vessel-rated components and robust safety features, the unit ensures safe and dependable operation under demanding industrial conditions. Fully automatic, energy-efficient, and low-maintenance, it offers long service life and cost-effective protective atmosphere generation for a wide range of manufacturing processes.
Technical Parameters
Capacity: 5-250Nm³/h
Dew point :-70 ℃
Oxygen content: less than 3ppm
Ammonia content: less than 3ppm
| Model | Capacity | Power consumption | Liquid ammonia consumption | Cooling water consumption | Dimensions |
| (Nm3/h) | (KW) | kg/hr | m3/hr | mm | |
| ANH-NHP-5 | 5 | 6.5 | 1.89 | N/A | 1400*1180*1600 |
| ANH-NHP-10 | 10 | 13 | 3.79 | N/A | 1440*1340*1600 |
| ANH-NHP-20 | 20 | 24 | 7.58 | 0.2 | 2200*1435*1800 |
| ANH-NHP-30 | 30 | 34 | 11.36 | 0.2 | |
| ANH-40 | 40 | 36 | 15.15 | 0.25 | 1870*2065*2570 |
| NHP-40 | 40 | 3 | N/A | 1530*880*2010 | |
| ANH-50 | 50 | 44 | 18.94 | 0.25 | 1870*2065*2570 |
| NHP-50 | 50 | 3 | N/A | 1530*860*2010 | |
| ANH-60 | 60 | 52 | 22.73 | 0.25 | 1870*2065*2570 |
| NHP-60 | 60 | 3 | N/A | 1530*860*2010 | |
| ANH-70 | 70 | 58 | 26.52 | 0.42 | 1870*2065*2570 |
| NHP-70 | 70 | 6 | N/A | 1480*900*2050 | |
| ANH-80 | 80 | 64 | 30.30 | 0.42 | 1870*2065*2570 |
| NHP-80 | 80 | 6 | N/A | 1480*900*2050 | |
| ANH-90 | 90 | 88 | 34.09 | 0.65 | 1990*2295*2580 |
| NHP-90 | 90 | 6 | N/A | 1800*1000*2050 | |
| ANH-100 | 100 | 83 | 37.88 | 0.65 | 1990*2295*2580 |
| NHP-100 | 100 | 6 | N/A | 1800*1000*2050 | |
| ANH-110 | 110 | 104 | 41.67 | 0.65 | 1990*2295*2580 |
| NHP-110 | 110 | 6 | N/A | 1800*1000*2250 | |
| ANH-120 | 120 | 104 | 45.45 | 0.65 | 1990*2295*2580 |
| NHP-120 | 120 | 6 | N/A | 1800*1000*2250 | |
| ANH-140 | 140 | 117 | 53.03 | 0.85 | 1990*2295*3078 |
| NHP-140 | 140 | 9 | N/A | 1800*1000*2450 | |
| ANH-150 | 150 | 138 | 56.82 | 0.85 | 1990*2295*3078 |
| NHP-150 | 150 | 9 | N/A | 1800*1000*2650 | |
| ANH-160 | 160 | 138 | 60.61 | 0.85 | 1990*2295*3078 |
| NHP-160 | 160 | 9 | N/A | 1800*1000*2650 | |
| ANH-180 | 180 | 155 | 68.18 | 1.15 | 2290*2620*3100 |
| NHP-180 | 180 | 13.5 | N/A | 2150*1000*2785 | |
| ANH-200 | 200 | 155 | 75.76 | 1.15 | 2290*2620*3100 |
| NHP-200 | 200 | 13.5 | N/A | 2150*1000*2595 | |
| ANH-250 | 250 | 196 | 94.70 | 1.3 | 2520*2775*3150 |
| NHP-250 | 250 | 13.5 | N/A | 2150*1000*2600 |
